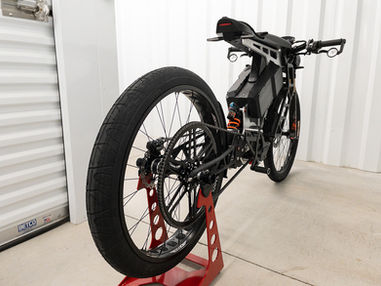

INTRODUCING THE 2023 01-DCR
Bespoke in every way, the new 2023 01-DCR Electric Bike is exceptional performance and anything but ordinary. The world's lightest hyper-light™ architecture Class 4 Electric Bike incorporates a 100Kv Brushless DC motor, 93 ft-lbs. of torque (126Nm) and low mass that rocks the senses and stirs the soul.
MAX SPEED
85 MPH
FULL CHARGE
02 HRS
MAX RANGE
120 MI
dimensions
Wheelbase
132cm / 51.9in
Rake
18de / 18de
Trail
57m / 2.25in
Curb Weight
34kg / 75lbs
Overall Length
196cm / 77.2in
Seat Height
91.4cm / 36in
Minimum Ground Clearance
25.4cm / 10in
POWERTRAIN
ASI-BAC4000 Controller
60Volt 450 AM
Brushless DC Motor
120k
Max Motor RPM
8,820
Max Motor Torque
75lb.ft. (100Nm)
Front Sprocket
01-16 Tooth Steel Performance
Rear Sprocket
01-112 Tooth Aluminum Perfomance
Drive Chain
#35 RLV Performance
bATTERY
Architecture
Removable
Peak Power Output
60v / 630
Cell Type
21700
Cell Configuration
14S-6P Performance
Charge Time
2 Hours
Fast Charge Range
45 Miles
Full Charge Range
65-120 Miles (120km-193km)
CHASSIS
Frame
01-Billet Aluminum / Trussform
Front Shock
FOX 38 Air

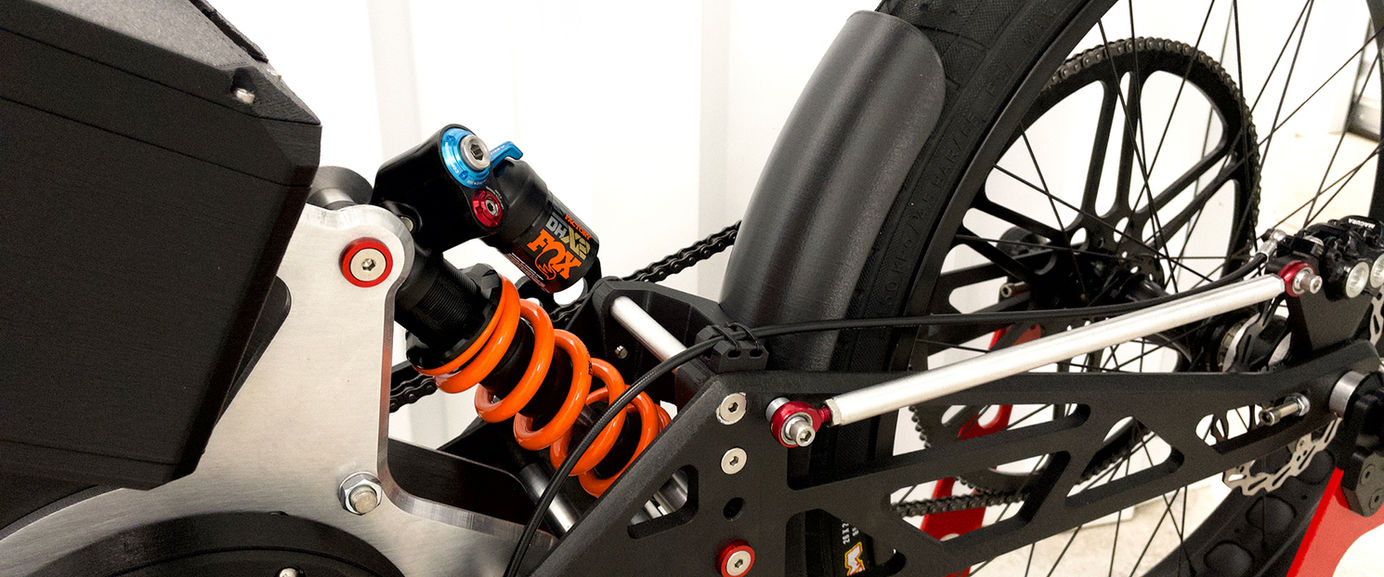

Rear Shock
FOX DHX2 / 550lb Coil Over
Front & Rear Brakes
Magura 4-piston e-Brake
Front & Rear Tires
Maxxis Hookworm 2
Front Wheel
Halo / SAS 26 X 1.75 (44mm)
Rear Wheel
Halo / Tundra 26 X 3.00 (80mm)
READY TO GET YOUR 2023 01-DCR
ON THE BUILD SCHEDULE? WE HAVE LIMITED AVAILABILITY AS EACH BIKE IS HANDBUILT,
SO REACH OUT NOW AND LET'S GO!
